KB ELECTRONICS KBPC-240D Black 0-90/180VDC Output, 115/230VAC Input, 50/60HZ, KB # 9338 (Black), NEMA 4X / IP65, Penta-Drive, SCR DC Drive, Thru 2HP

KBPC-240D NEMA-4X Adjustable Speed DC Motor Control The KBPC-240D is a 115/230vac, enclosed NEMA-4X (IP-65), adjustable speed DC Motor Speed & variable Torque control, rated 15 Amps RMS @ 45C. It is designed for environments where high humidity or watertight integrity is required. Its housing is ruggedly constructed of die cast aluminum, which is protected with an anti-corrosive acrylic coating. Motors will last longer with our exclusive Short Circuit and Timed Current Limit (TCL) circuitry that prevents motor burnout and demagnetization of PM motors. Selectable features are: motor voltage 90/180VDC, motor current range .25 to 10 amps, input signal 0-5/0-20VDC, armature/tachometer feedback, tachometer voltages 7,25,50 V/1000 rpm. Analog adjustments include: Min, Max, Accel, Decel, IR, CL, TCL and Jog. Standard features are: armature fusing, electronic start-stop and LED indicators for "Power On," "Stop" and "Overload". Options: Forward-Brake-Reverse switch, Signal Isolator, Run-Stop-Jog switch, Auto/Manual kit. Approvals: UL, CSA, CE.

• KBPC-240D Black KB Electronics 115/230 VAC, thru 1
• 0/2

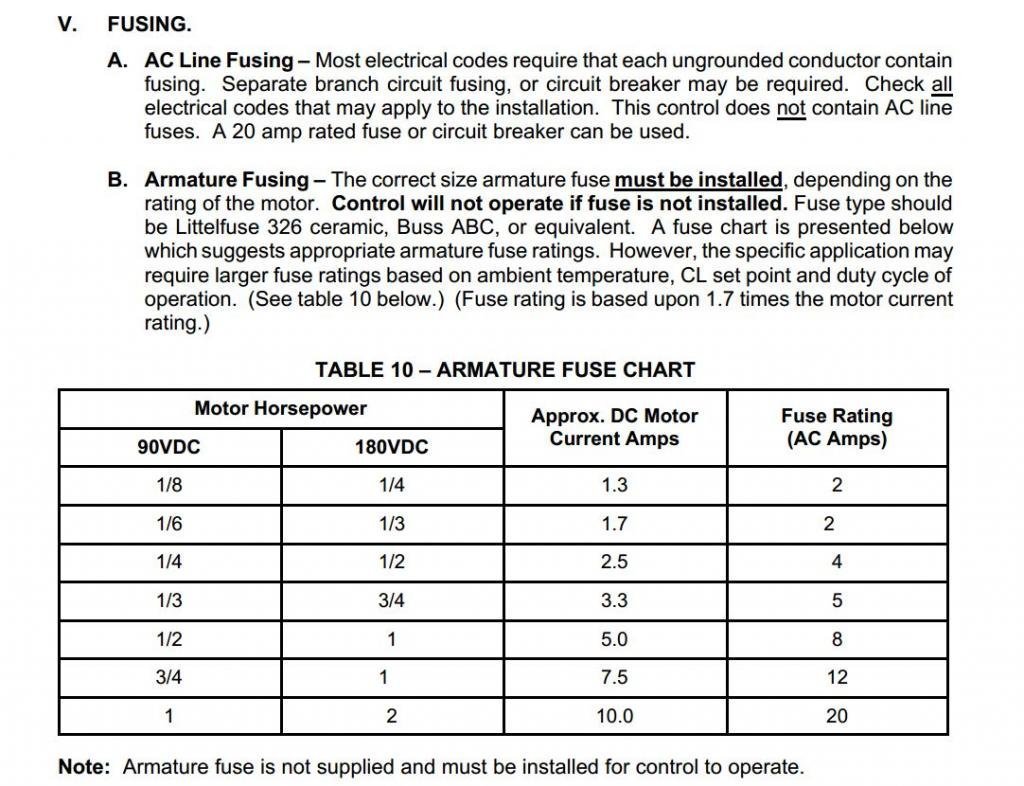

• 0 HP, 90/180 VDC ARM (9338) Plug-in Horsepower Resistor Not Required This control uses a jumper for current selection Plug-in Line Fuse External No provisions for mounting the fuse on the control,
• Plug-in Line Fuses purchased separately Plug-in Armature Fuse Included Fuse is included with the control The KB Electronics KBPC Series NEMA-4X (IP-65) SCR DC Motor Speed and Torque Control is
• Its housing is ruggedly constructed of die cast aluminum which is protected with an acrylic coating
